Narrow Head Flashbutt Welder Ensures Precision in Confined Spaces

Rail welding operations require precision, efficiency, and adaptability to varying project requirements and conditions. Ensuring high-quality welds while maintaining operational flexibility is critical for seamless rail
maintenance and construction.

PRM’s investment in a narrow head flash butt welder provides a sustainable and practical solution for welding in confined spaces. The tall and narrow design requires minimal clearance, allowing for precise welding near adjacent rail or fixed objects.

---

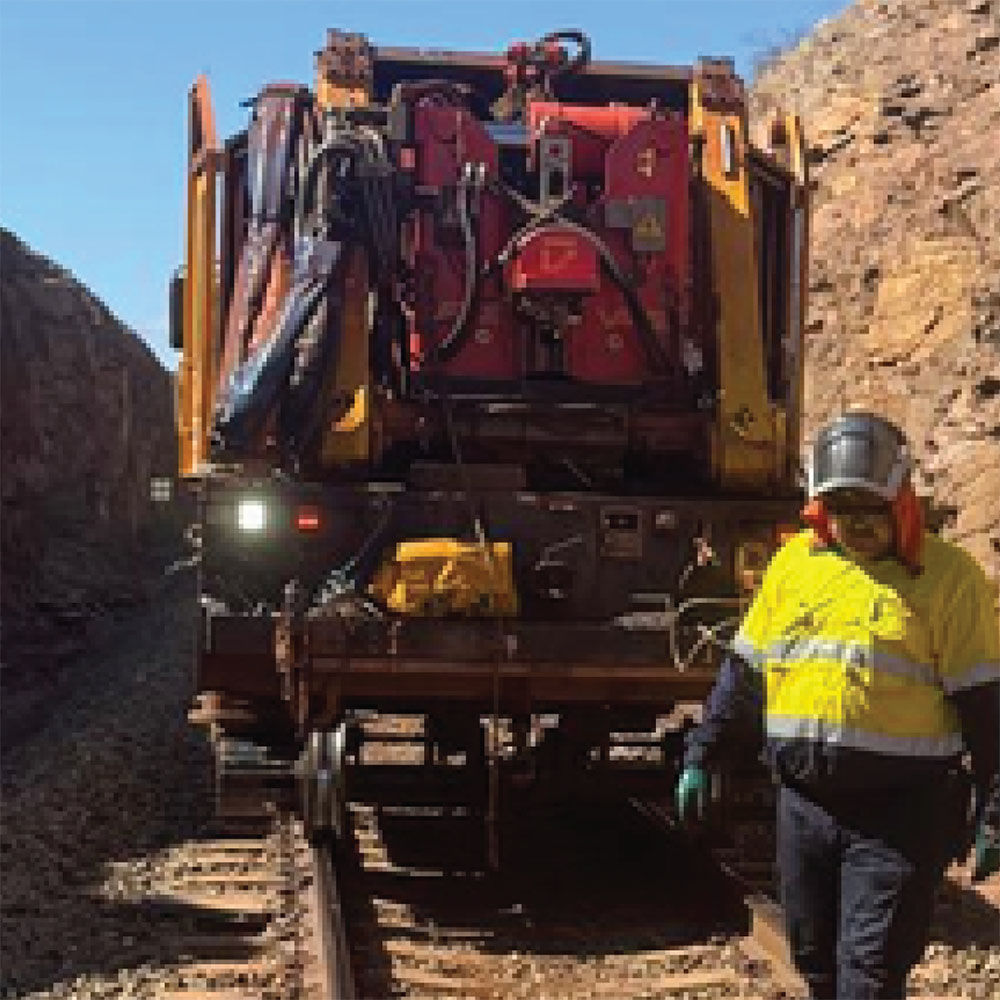

Before

Traditional methods, particularly when welding turnouts, often posed logistical challenges, particularly in remote and confined space locations, making it near impossible to flash butt weld.

---

---

After

The slim design of the NHFBW head allows precise welding near adjacent rail and fixed structures. Mounted on a MAN chassis with Aeries hi-rail and an extended reach crane, improving access, weld quality, and efficiency.

---

The Outcomes and Benefits

Versatile Design

• Narrow weld head fits all RTIO weld locations, reducing reliance on AT welds

High-Quality Output

• Delivers plain line welds equal to K945 standards
• Improved Efficiency
• Off-track welding via extended reach crane
• Smaller track sections needed—no level crossing access required
• Reduced public interface and safety risk
• Faster IRJ, closure rail, and turnout installs without hi-rail access

Multi-Functional Capability

• Supports dual weld heads for destressing operations
